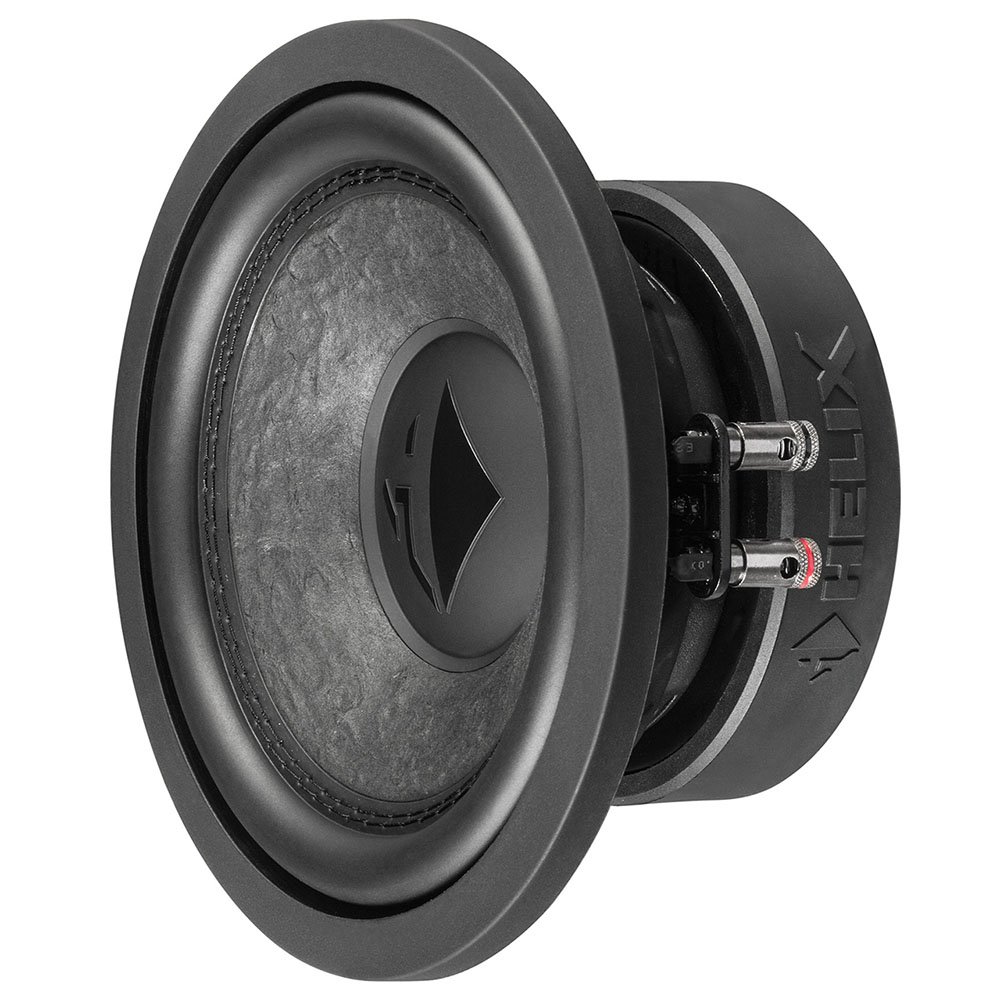

Helix IK W8 SVC2 Version
Rich bass out of compact dimensions
The chassis of the K subwoofer series can all be used in very compact enclosures in which they perform magnificently with exceptional bass performance. Especially when it comes to using the available space in the vehicle as good as possible due to an individual enclosure design, these woofers open up completely new possibilities for installation without making any acoustic compromises.
Clever down to the last detail

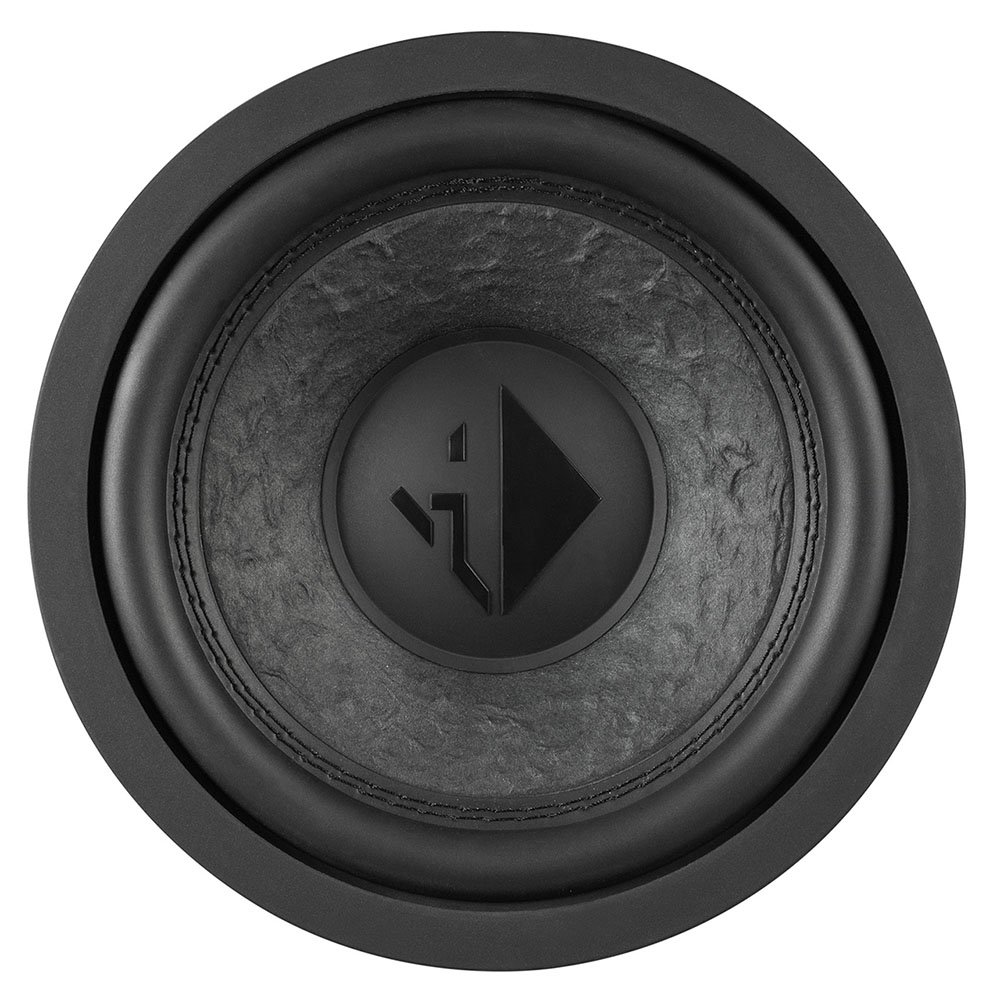

The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.
Flexible connection
Designed as a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) variant, you can find the right low bass specialist for any amplifier configuration to get the maximum performance out of it.
“All inclusive” for the do-it-yourselfer

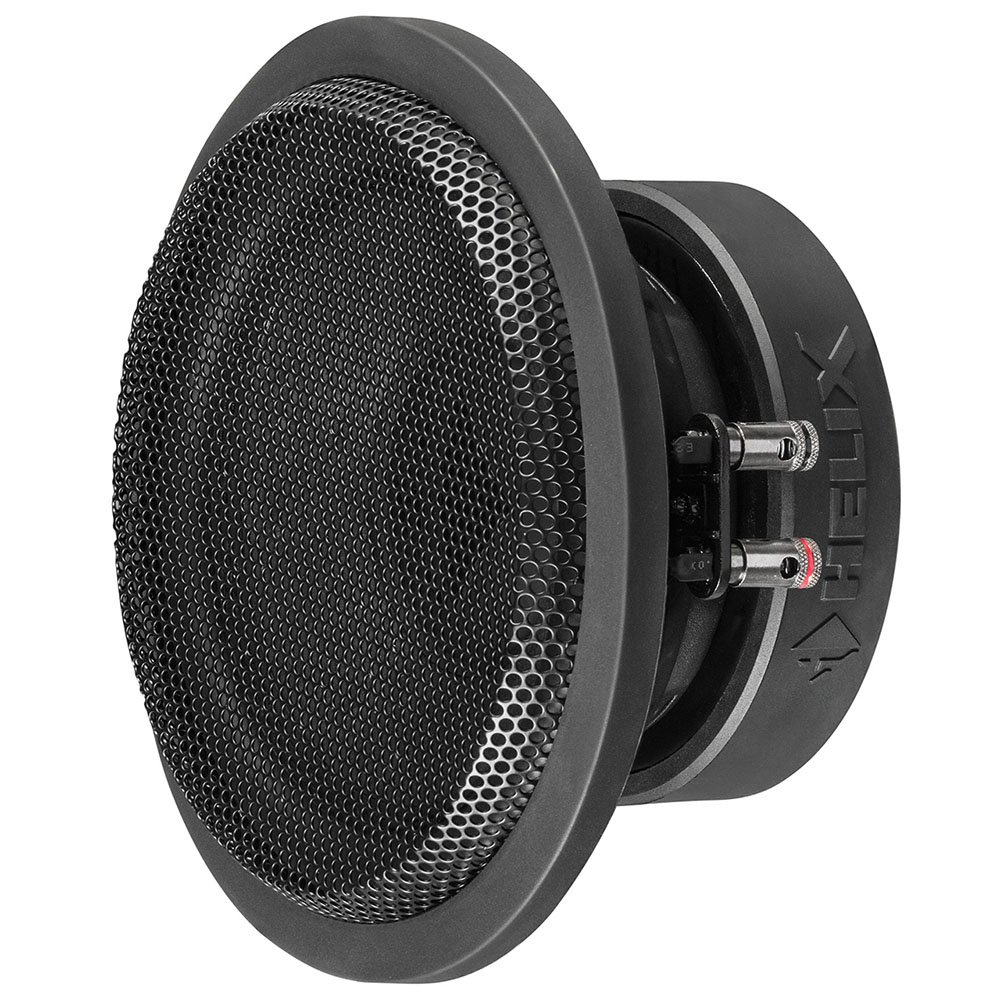

In addition, the solid protective grille and gasket are also included.
For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet.
Features
- 1 x 2 Ohms single voice coil
- Extremely stiff, hand-scooped paper cone for outstanding impulse response
- Double ventilated voice coil for minimum compression effects and high power handling
- Long-excursion rubber surround for highest mechanical rating
- Solid push terminals
- Powerful magnet system for compact enclosures

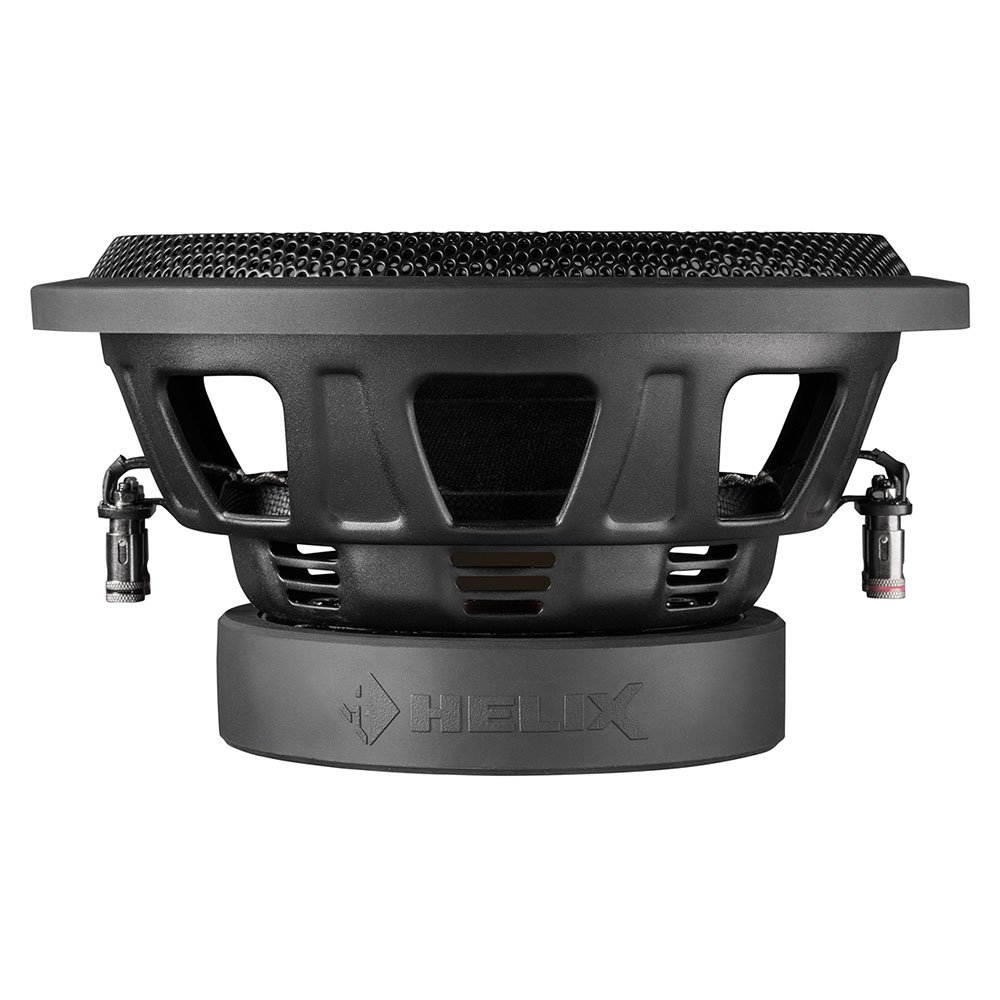

- Rugged magnet cover with HELIX lettering for perfect magnet protection
- Grille and gasket included in delivery
Specifications
- Power handling RMS / max. P 300 / 600 Watts
- Impedance Z 1 x 2 Ω
- DC resistance Re 1 x 2.0 Ω
- Resonance frequency Fs 37 Hz
- Mechanical Q factor Qms 4.01
- Electrical Q factor Qes 0.49
- Total Q factor Qts 0.44
- Compliance Cms 190 μm/N
- Equivalent air volume Vas 13.4 L
- Force factor B*I 10.2 Tm
- Sensitivity SPL
- 91.0 dB @ 2.83V / 1m
- 85.0 dB @ 1W / 1m
- Cone area Sd 219 cm²
- Moving mass Mms 86 g
- Cone material Hand-scooped paper cone
- Mechanical resistance Rms 6.1 kg/s
- Voice coil diameter ø 50.8 mm
- Voice coil winding height 24 mm
- Max. linear excursion Xmax +/- 8.0 mm
- Outer diameter ø 213.5 mm / 8.40″
- Installation diameter ø 182 mm / 7.17″
- Installation depth 101 mm / 3.98″
- Recommended enclosure volumes
- Sealed box
- Net volume 10 L
- Lower limiting frequency (-3dB) 45 Hz
- Recommended DSP settings Recommended “self-define” highpass filter with 46 Hz cut-off frequency and Q = 1.5,
- additional EQ filter 90 Hz / Q = 1.0 / -2.5 dB
- Vented box
- Net volume 9 L
- Port diameter ø 60 mm / 2.36″
- Port area 28 cm²
- Port length 46 cm / 18.1″ (angled port)
- Port tuning frequency Fb 38 Hz
- Lower limiting frequency (-3dB) 41 Hz
- Recommended DSP settings Recommended “self-define” highpass filter with 40 Hz cut-off frequency and Q = 1.2,
- additional EQ filter 90 Hz / Q = 0.9 / -2 dB
What’s Included
- 1 x Subwoofer HELIX IK W8-SVC2
- 1 x Grille
- 1 x Gasket
- 1 x Data sheet
