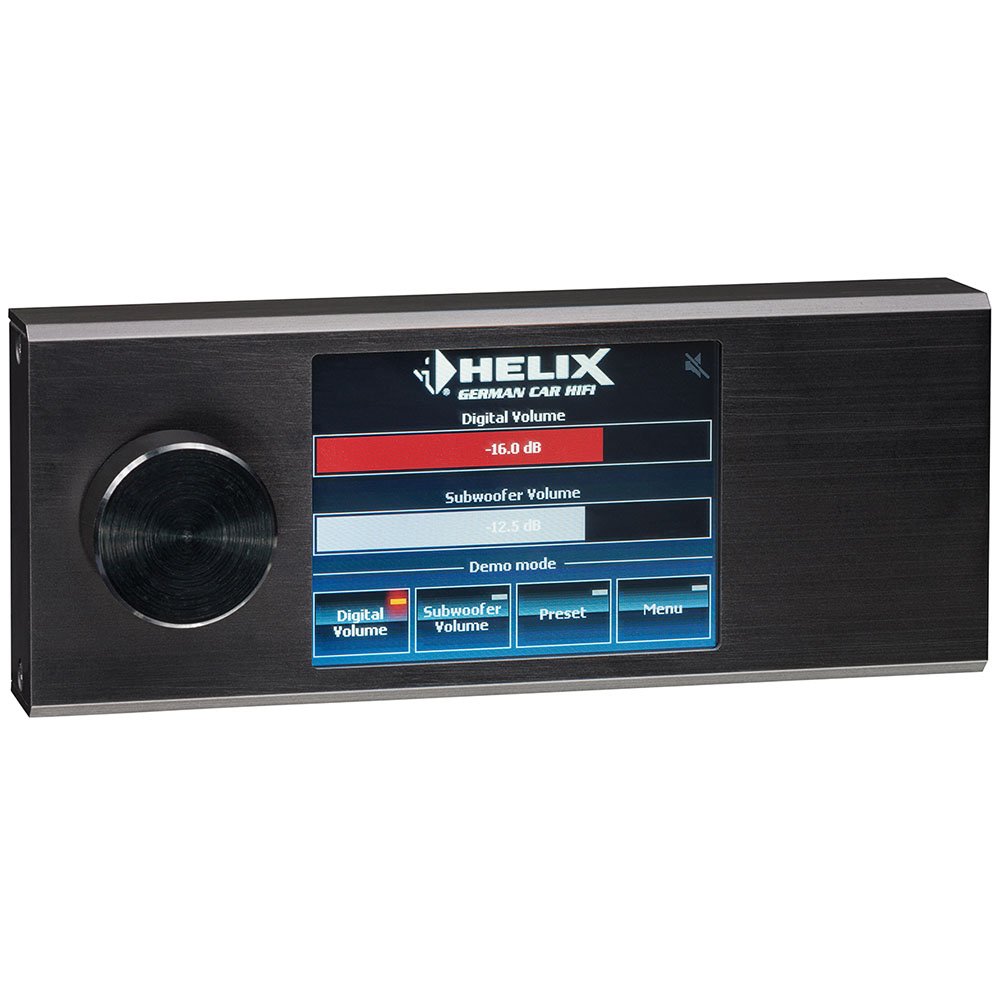

HELIX DIRECTOR – Display Remote Control with Touchscreen
Everything under control!
With the new remote control DIRECTOR, you lead from the front!
The 2.8” / 7 cm full colour touchscreen display and the intuitive menu navigation allow easy handling of many features – for example:
- Source selection
- Volume control of all sources
- Volume control of the subwoofer
- Control and configuration of the HEC BT module
- Switching between sound setups
Furthermore it provides sufficient memory for 20 additional sound setups and comes with a USB connector allowing straight access to your DSP device via the DIRECTOR – a big relief if you want to tweak your configuration while your processor/amplifier is hidden somewhere in the trunk.

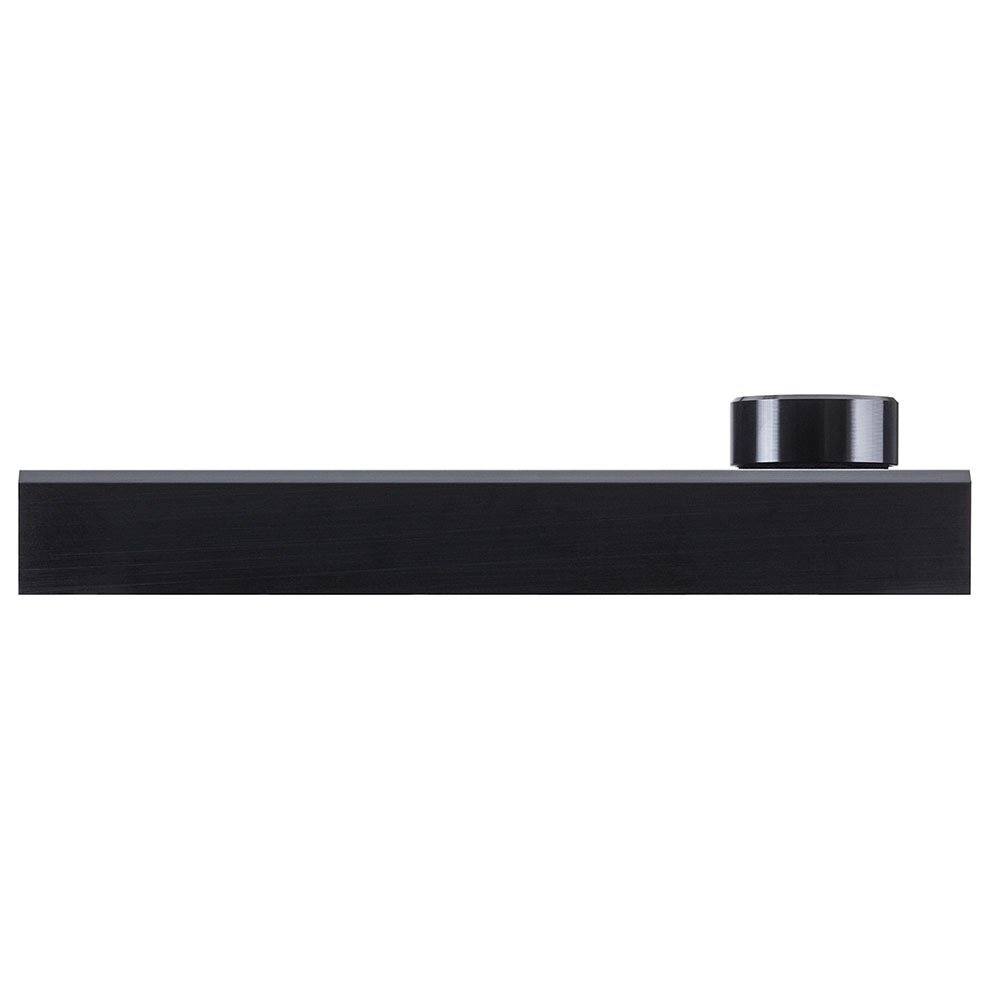

The high-resolution, full colour touchscreen display is housed in what was solid block of aluminum.
The DIRECTOR is compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher.
Features
- 2.8“ / 7 cm touchscreen display and powerful ARM processor
- Easy handling of the main functions
- Volume control of all sources
- Volume control of the subwoofer
- Source selection
- Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track
- forward/back, play/pause)
- Switching between sound setups
- Memory locations for 20 additional sound setups (only devices without ACO platform)
- Automatic dimming function of the display
- Display rotation adjustable to 180°
- Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
- Exclusive solid aluminum housing
- 17’ / 5.2 m connection cable included
Technical data
- Dimensions (H x W x D)
- 53.50 x 135 x 18 mm;
- 2.07 x 5.32 x 0.71″
The DIRECTOR cannot be combined with another control unit.
The DIRECTOR for Control Input can also be connected to newer devices with SCP input using an SCP-to-Control Input adaptor (Part No. M141313). If the adaptor is not included with your DSP device, it is available separately from your authorized dealer.
Scope of delivery
- 1 x Remote control DIRECTOR
- 1 x Connection cable for Control Input, 17′ / 5.2 m length
- 1 x Instruction manual
