Helix IK W10 DVC2 Version
Stunning bass performance out of compact dimensions
With the new KW chassis, we’re expanding our IMPACT subwoofer lineup, offering powerful drivers for use in very compact enclosures. Especially when it comes to the most efficient usage of available space in the vehicle regarding an individual enclosure design, these woofers create completely new installation possibilities without ever compromising the acoustic performance.
Clever down to the last detail

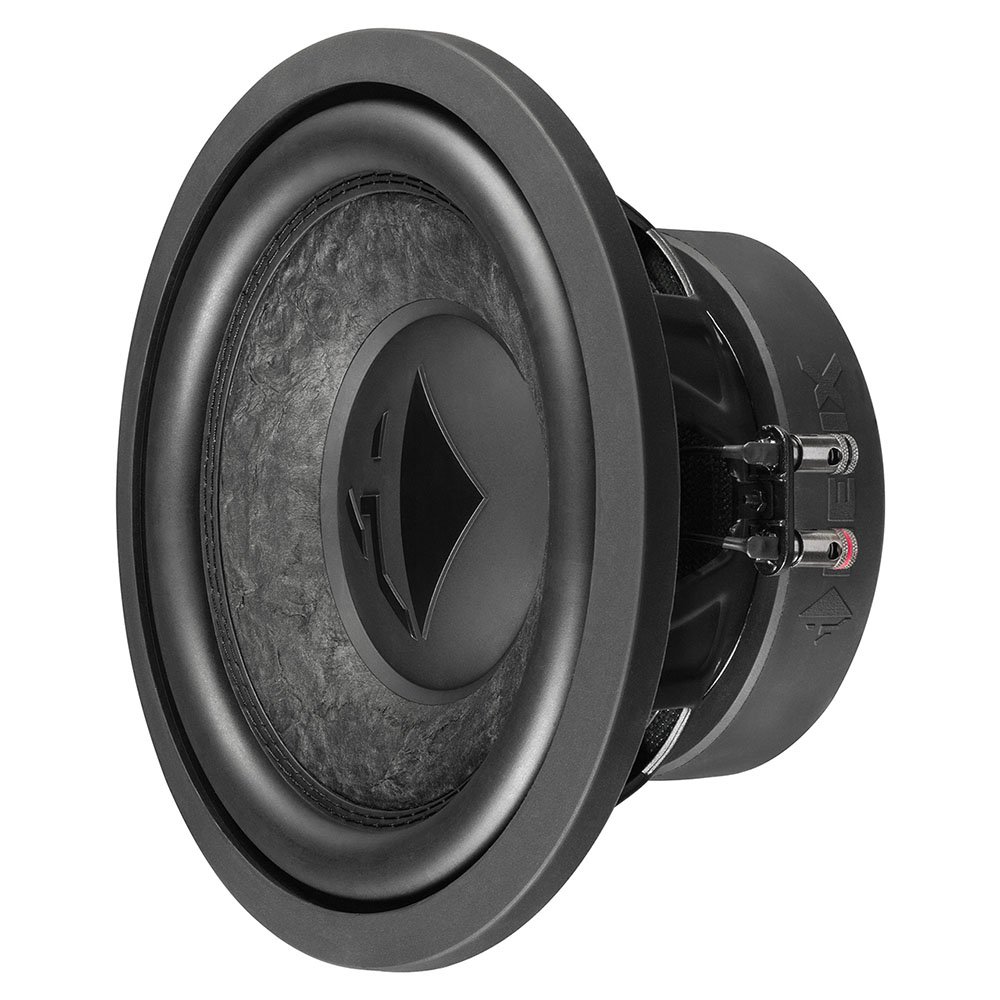

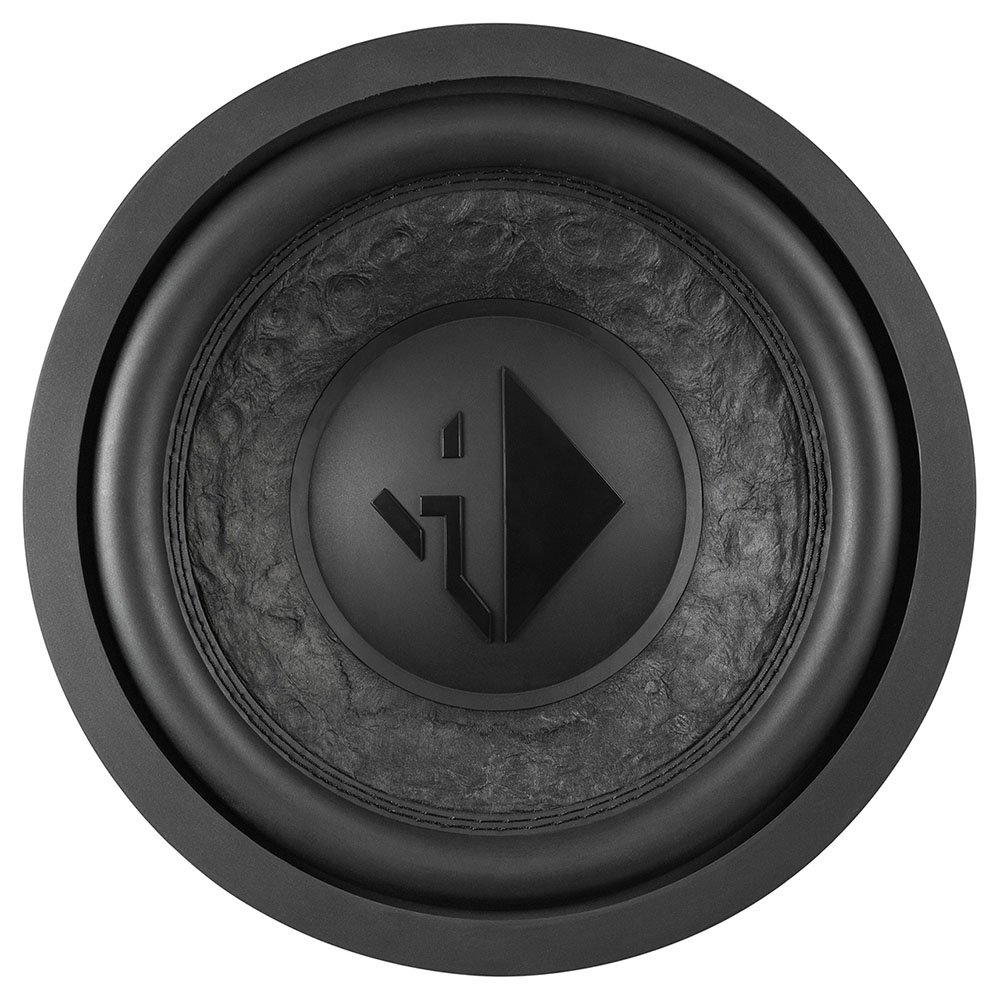

The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.
Flexible connection – 2 x 2 or 1 x 2 Ohms
The chassis are available as 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) version. Thus, these subwoofers always offers the right solution for every amplifier configuration to get the maximum performance out of it – whether mono, 2-channel or even multi-channel amplifier.
“All inclusive” for self-made enthusiasts

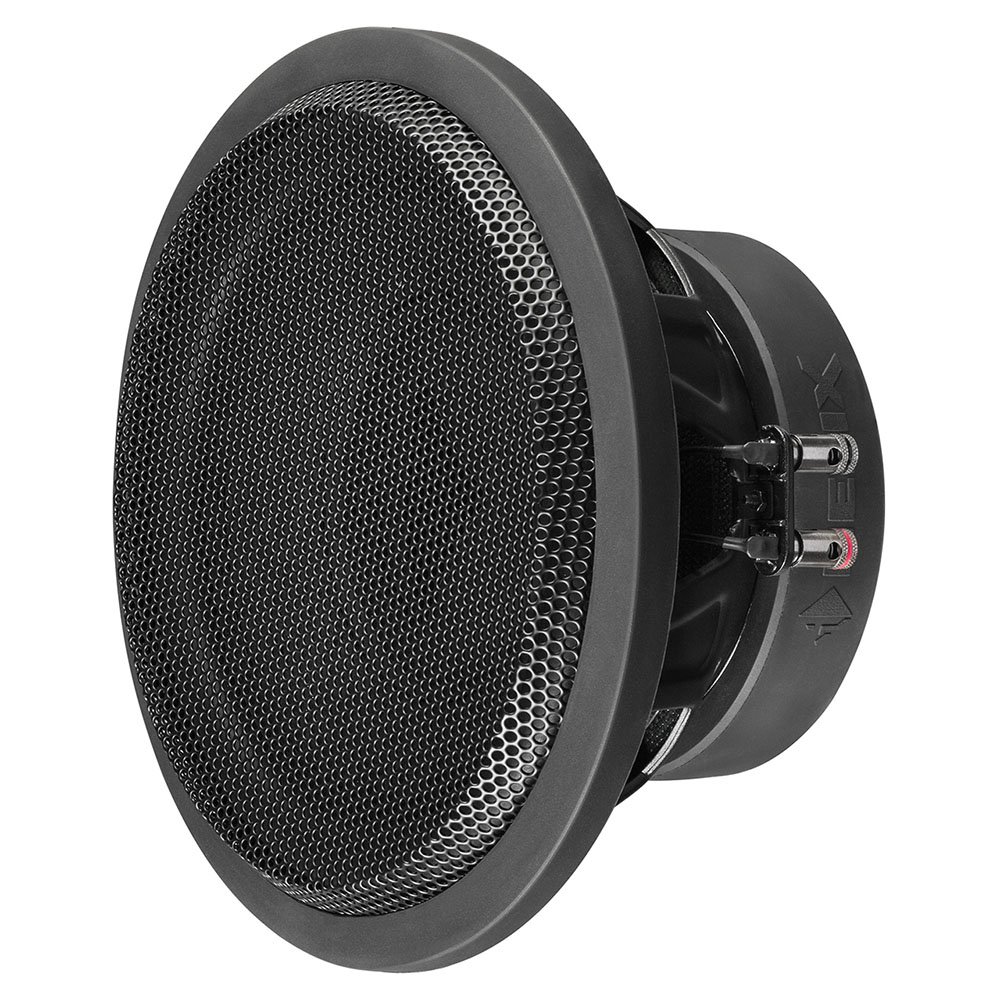

In addition, the solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet.
Features
- 2 x 2 Ohms dual voice coil for flexible system configuration
- Extremely stiff, hand-scooped paper cone for outstanding impulse response
- Double ventilated voice coil for minimum compression effects and high power handling
- Long-excursion rubber surround for highest mechanical rating
- Solid push terminals
- Powerful magnet system for compact enclosures

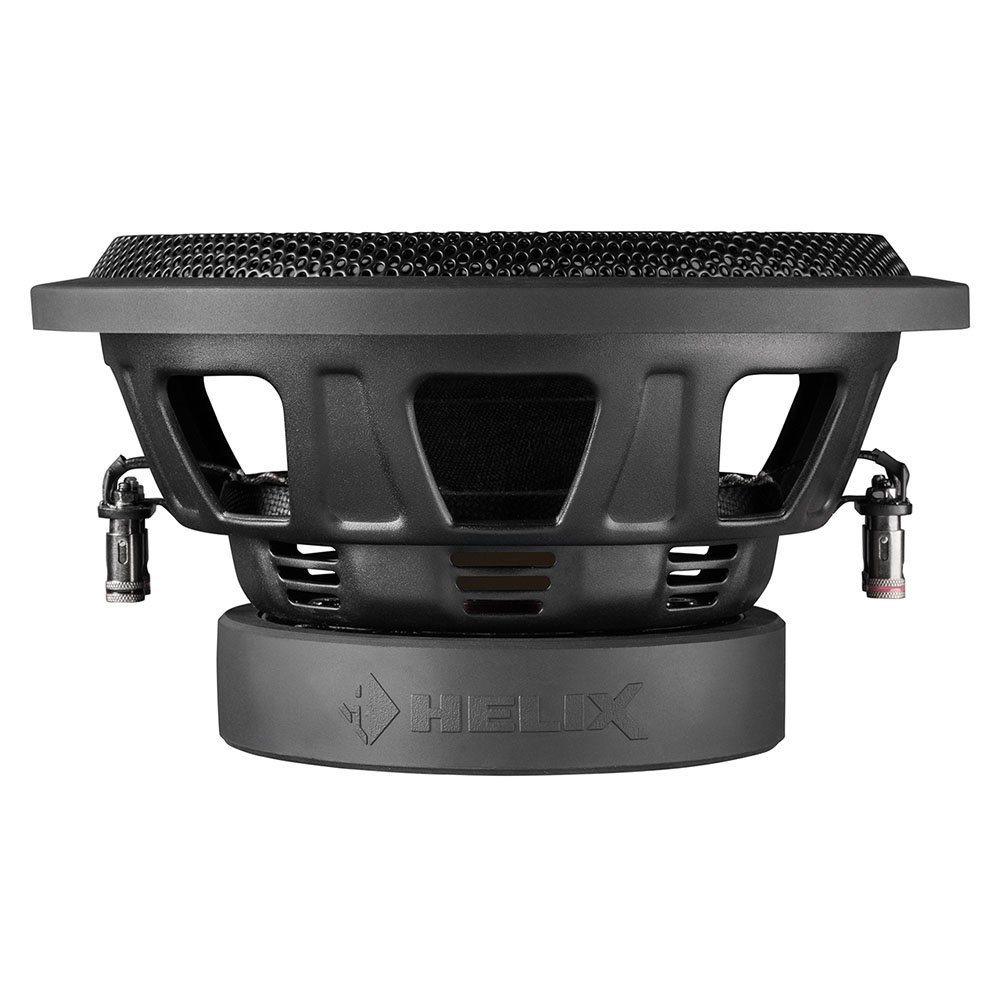

- Rugged magnet cover with HELIX lettering for perfect magnet protection
- Grille and gasket included in delivery
Specifications
- Power handling RMS / max. P 300 / 600 Watts
- Impedance Z 2 x 2 Ω
- DC resistance Re 2 x 1.6 Ω
- Resonance frequency Fs 36 Hz
- Mechanical Q factor Qms 4.50
- Electrical Q factor Qes 0.43
- Total Q factor Qts 0.39
- Compliance Cms 218 μm/N
- Equivalent air volume Vas 34 L
- Force factor B*I 12.3 Tm
- Sensitivity SPL
- 91.0 dB @ 2.83V / 1m
- 88.0 dB @ 1W / 1m
- Cone area Sd 333 cm²
- Moving mass Mms 91 g
- Cone material Hand-scooped paper cone
- Mechanical resistance Rms 4.56 kg/s
- Voice coil diameter ø 50.8 mm
- Voice coil winding height 24 mm
- Max. linear excursion Xmax +/- 8.0 mm
- Outer diameter ø 262 mm / 10.31″
- Installation diameter ø 232 mm / 9.13″
- Installation depth 126 mm / 4.96″
- Recommended enclosure volumes
- Sealed box
- Net volume 12 L
- Lower limiting frequency (-3dB) 53 Hz
- Recommended DSP settings “Self-Define” Highpass: 45 Hz / Q = 1.5;
- EQ Filter: 120 Hz / Q = 1.0 / -3 dB
- Vented box
- Net volume 19 L
- Port diameter ø 70 mm / 2.76″
- Port area 38 cm²
- Port length 22 cm / 8.66″
- Port tuning frequency Fb 43 Hz
- Lower limiting frequency (-3dB) 43 Hz
- Recommended DSP settings “Self-Define” Highpass: 37 Hz / Q = 1.5;
- EQ Filter: 115 Hz / Q = 0.7 / -2 dB
What’s Included
- 1 x Subwoofer HELIX IK W10-DVC2
- 1 x Grille
- 1 x Gasket
- 1 x Data sheet
